Opaflix Session Replay Viewer for Okta Privileged Access (OPA)

Introduction

#

If you work with Okta Privileged Access (OPA), you know that session recording is one of the most powerful features of the platform. It gives you a full audit trail of every SSH terminal session and every RDP desktop connection performed by your privileged users.

The problem? Out of the box, there is no simple way to browse and replay those recordings without digging into raw files or writing your own tooling. This is one of the most common pain points I hear from OPA customers in the field.

Today I’m releasing Opaflix — an open-source web application that lets you browse and replay converted OPA session recordings stored in AWS S3, protected by Okta OIDC authentication. Think of it as Netflix, but for your PAM recordings.

GitHub Repository

#

Why Opaflix?

#

Reviewing session recordings is a critical workflow for security teams, auditors, and PAM administrators. Whether you’re investigating a security incident, validating compliance, or simply verifying that a change was performed correctly, you need a fast and intuitive way to find the right session and play it back.

Like Netflix 🍿 but for your PAM recordings playback.

The inspiration for Opaflix came from opa-utils, a similar project by my former colleague Daniel Harris. Since that project is no longer maintained, I decided to build a new one from scratch with a more modern tech stack.

Key Features

#

Here is what Opaflix offers out of the box:

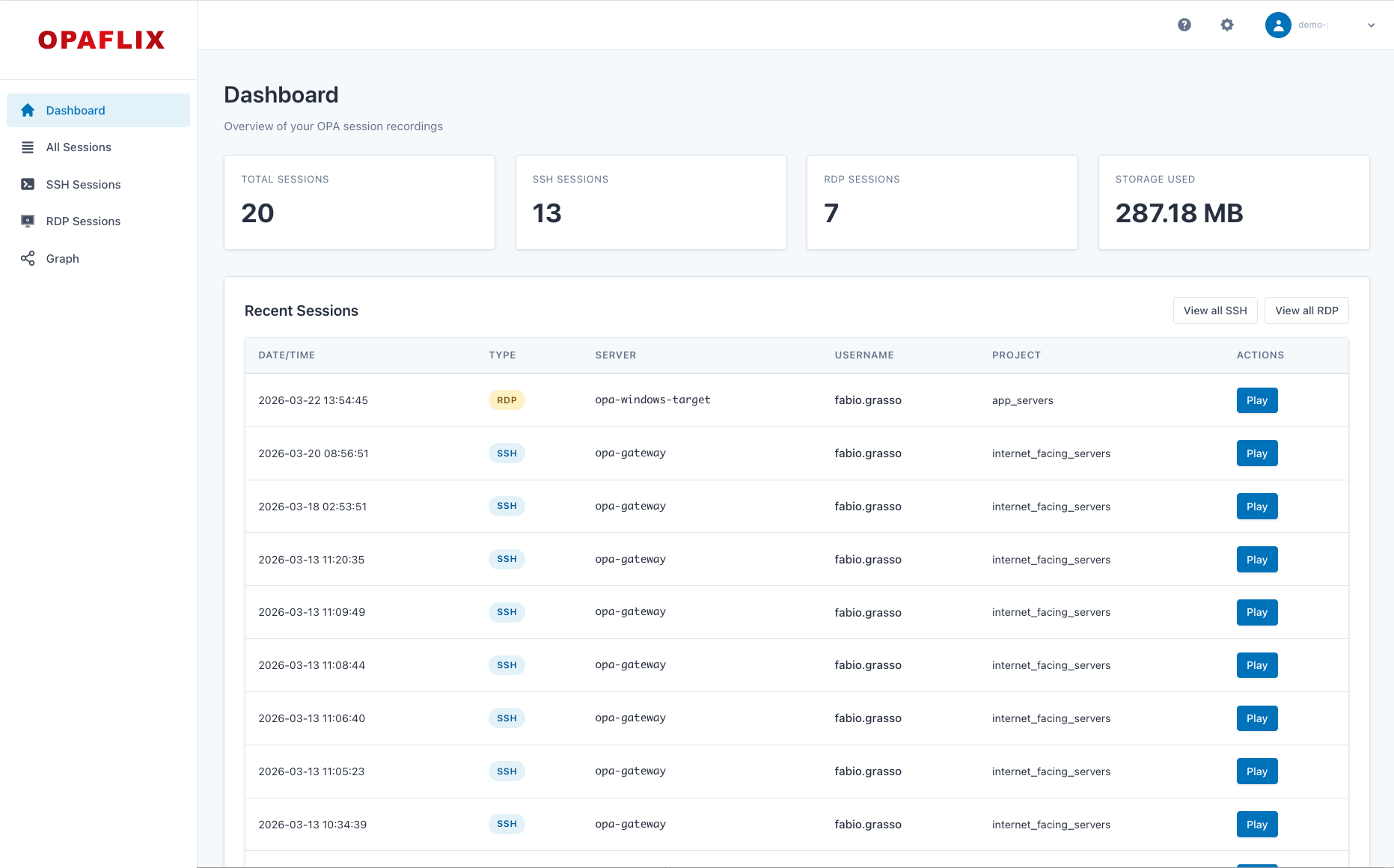

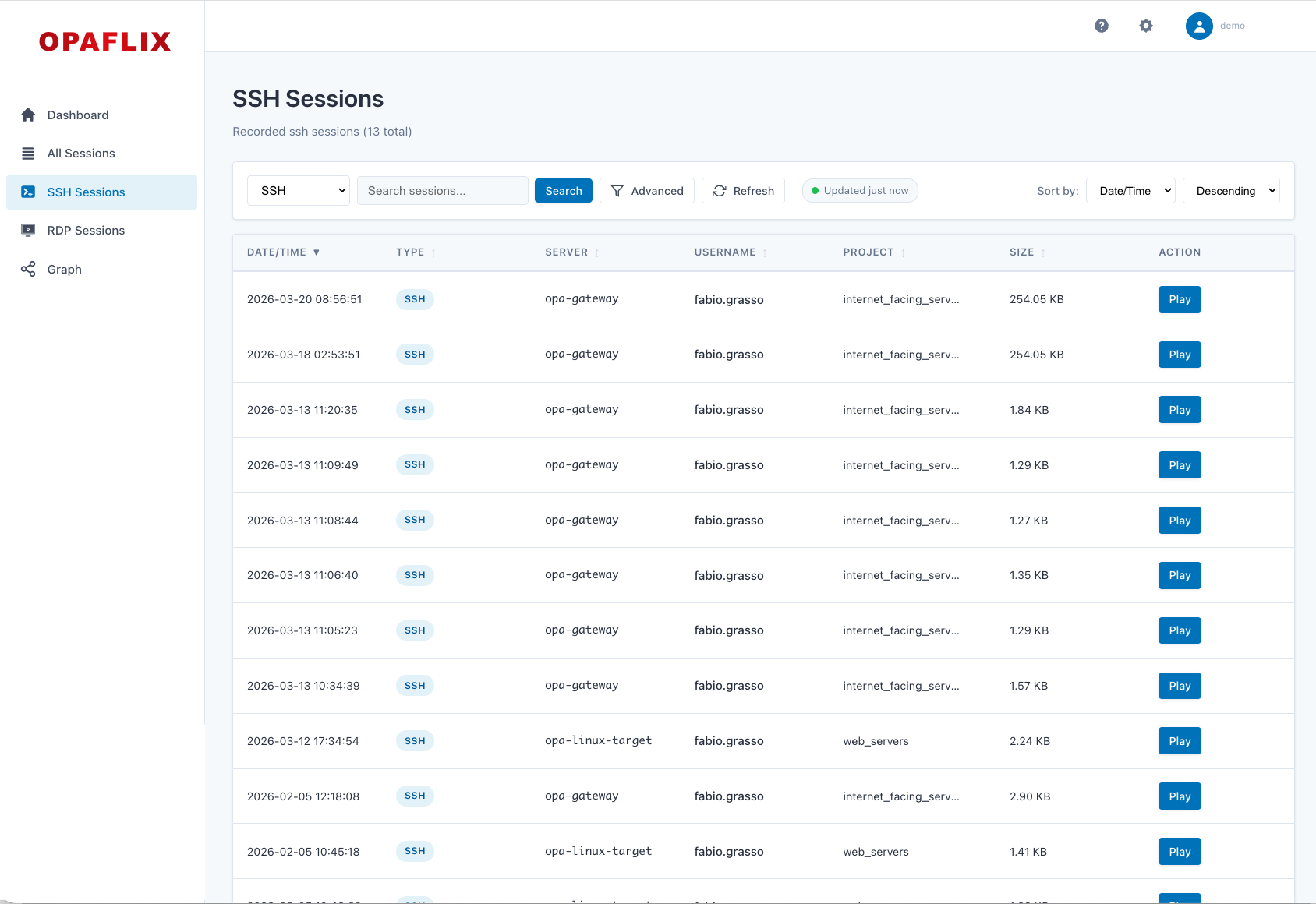

Dashboard and Sessions List

#

The dashboard provides an overview of session activity, including total sessions, sessions by team, and sessions by project. This gives you quick insights into usage patterns and helps identify anomalies.

Dashboard with Statistics	Sessions List

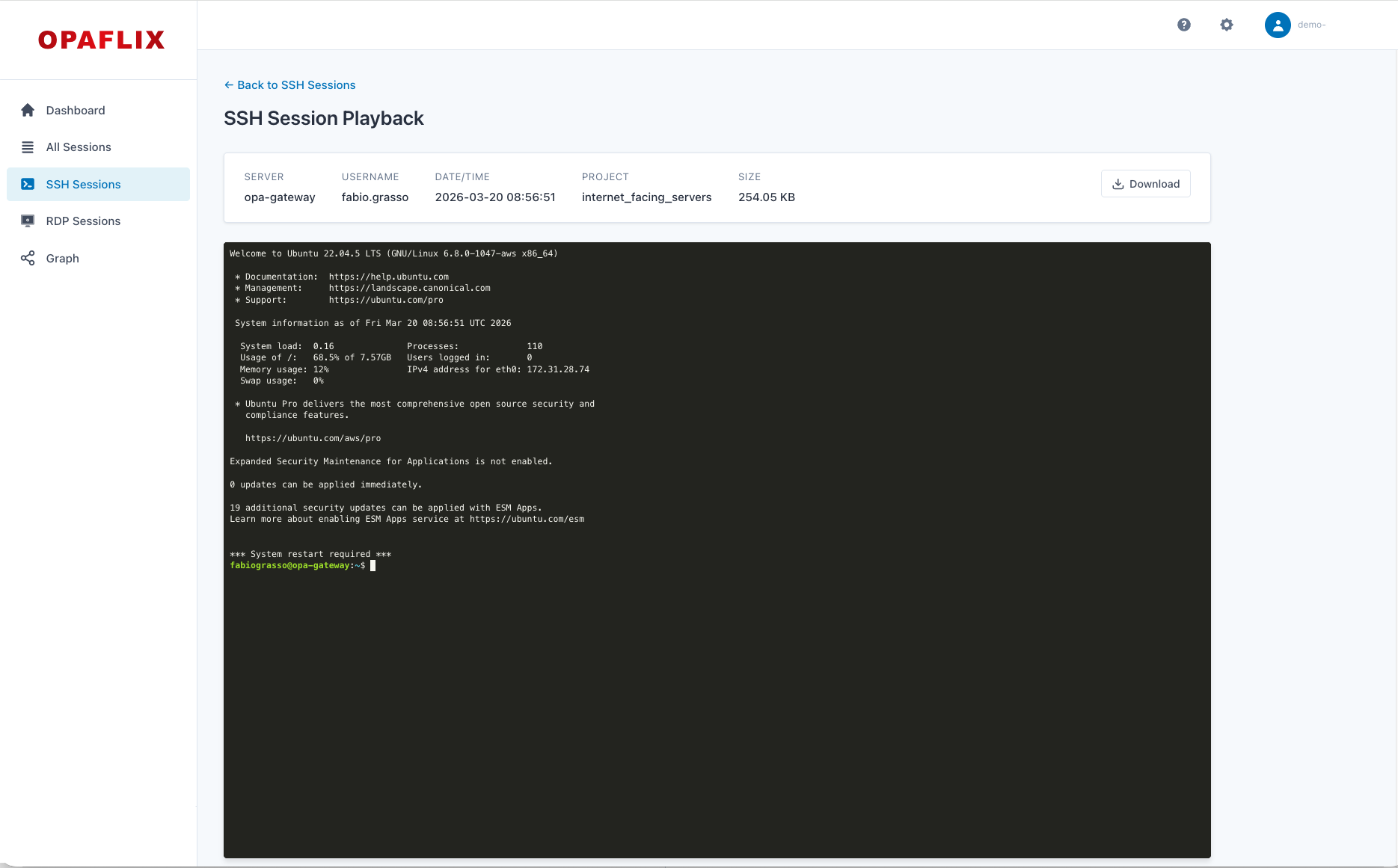

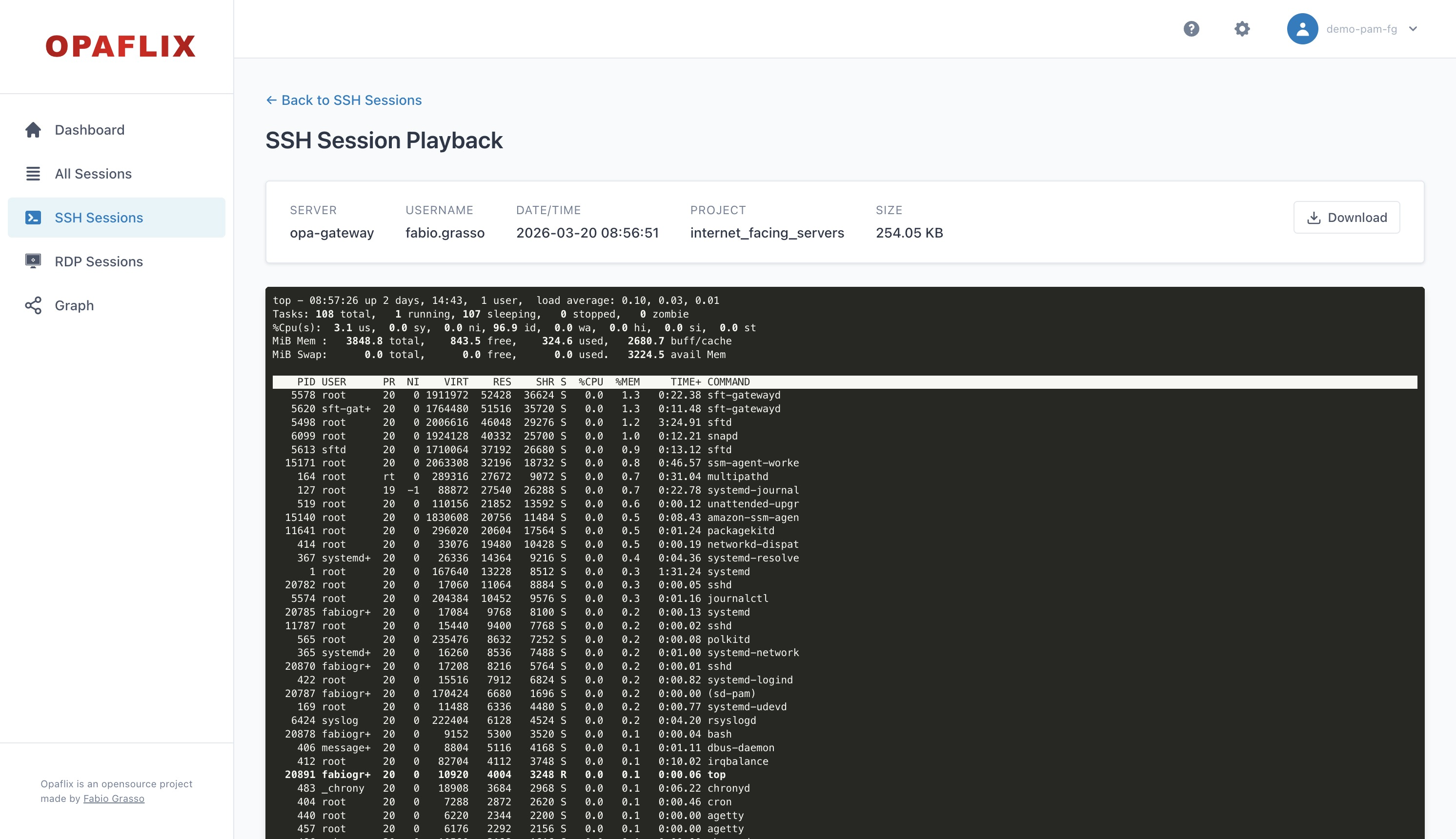

SSH & RDP Session Playback

#

SSH terminal sessions are replayed using the Asciinema player, with support for play/pause, speed control, and seeking. RDP desktop sessions are played back through an HTML5 video player. Both support direct download from S3 for offline access.

Single-Tenant and Multi-Tenant Modes

#

Opaflix supports two deployment modes.

• In single-tenant mode (default), everything is configured via environment variables with no database required — you can be up and running in under five minutes.
• In multi-tenant mode, a PostgreSQL database backs an isolated configuration per team, with a web UI for managing settings. This makes it suitable for centralized deployments serving multiple OPA teams.

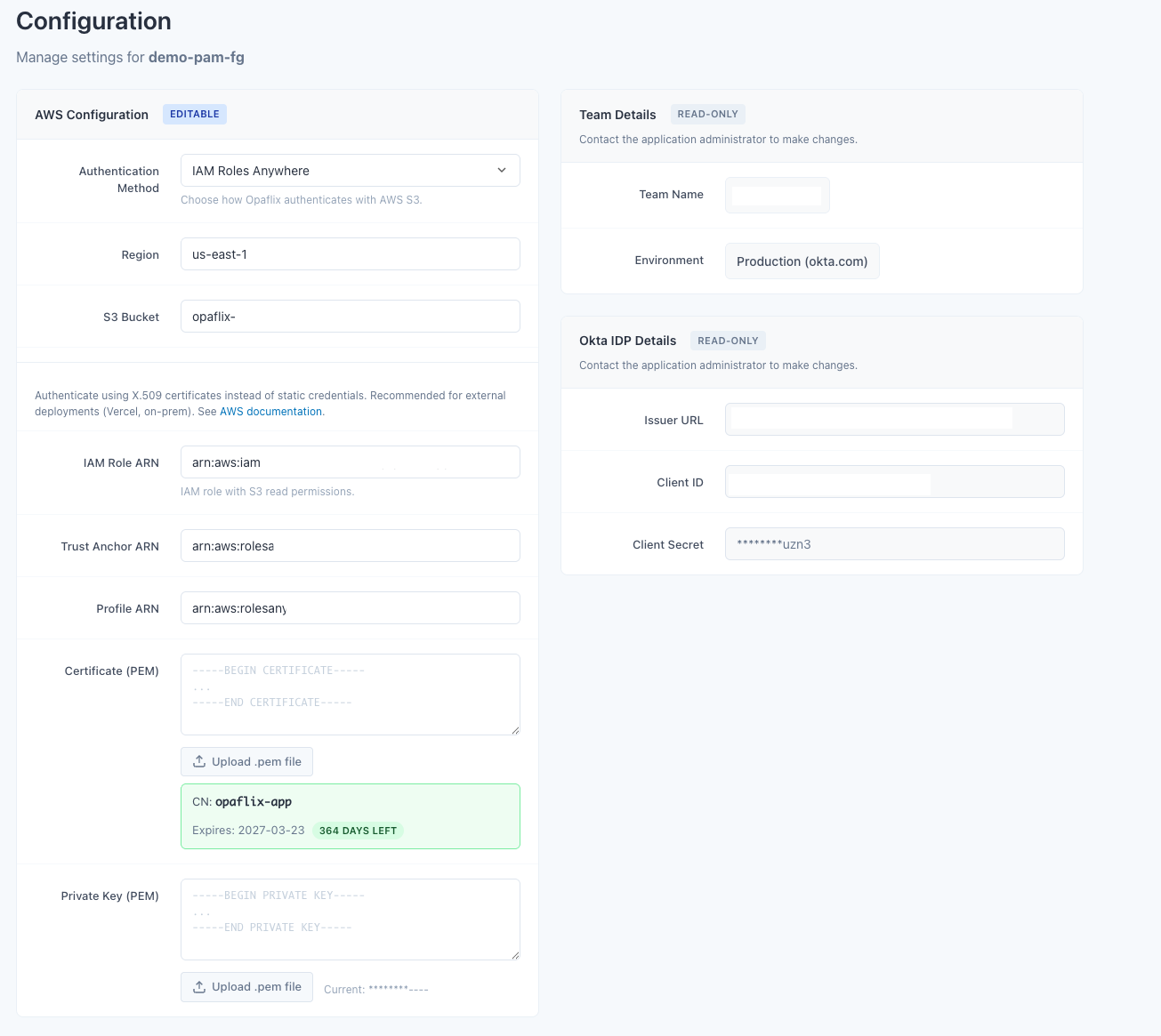

A configuration UI help managing settings in multi-tenant mode.

Advanced Search and Filtering:

#

Sessions can be searched and filtered by server, username, project, team, and date range. Filter dropdowns are populated with real-time data from the OPA API. Sortable and resizable columns make it easy to navigate large session archives.

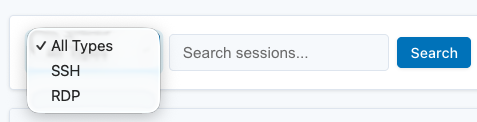

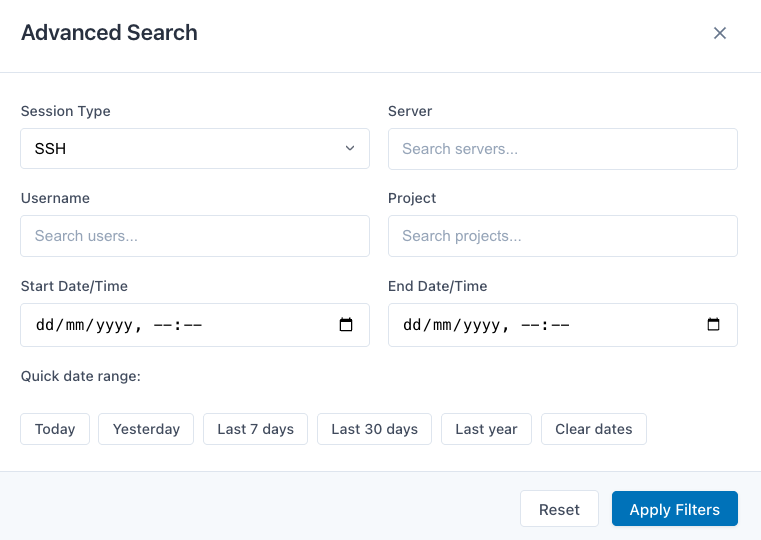

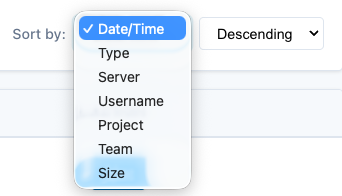

Simple Search	Advanced Search	Sorting

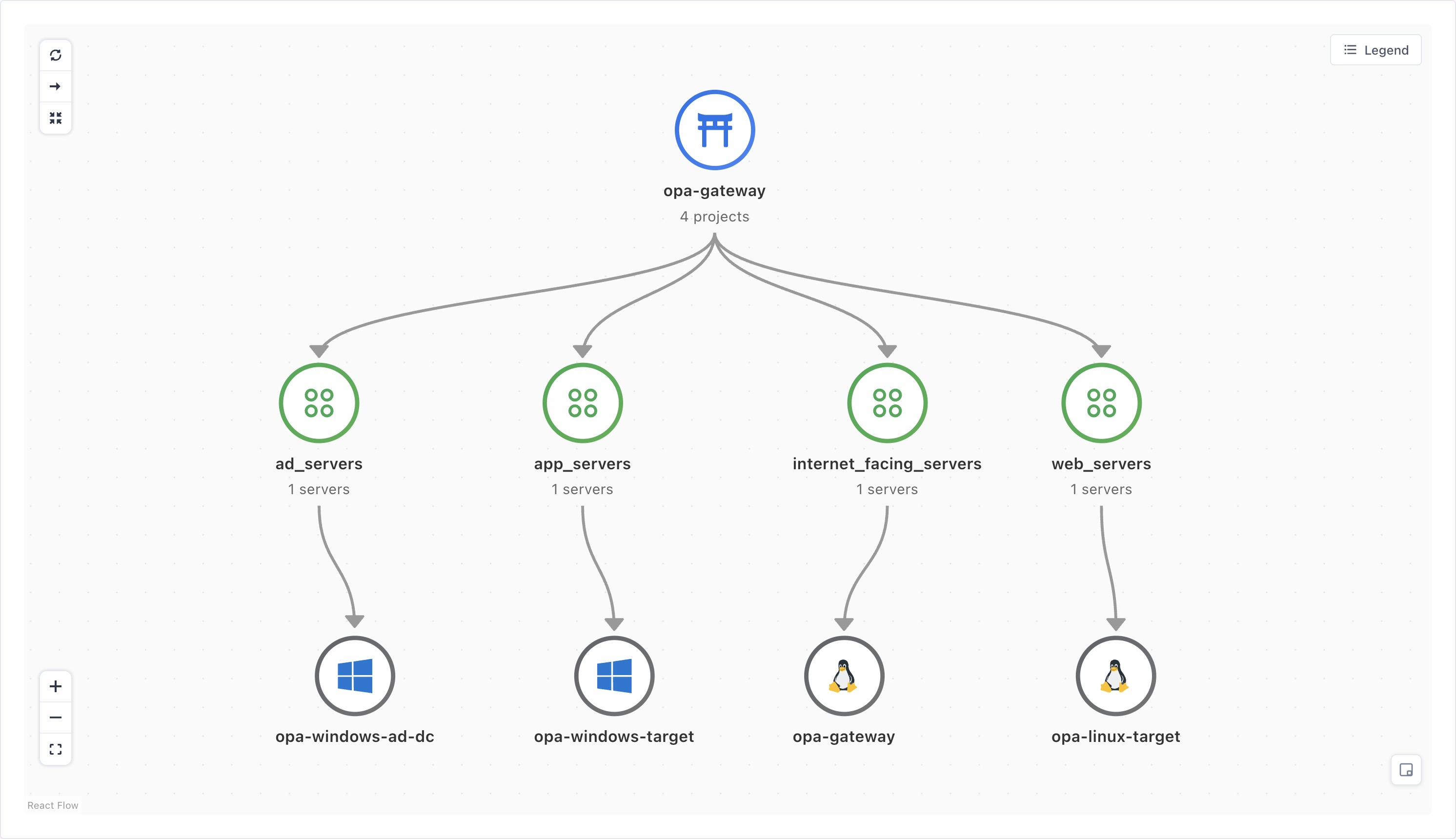

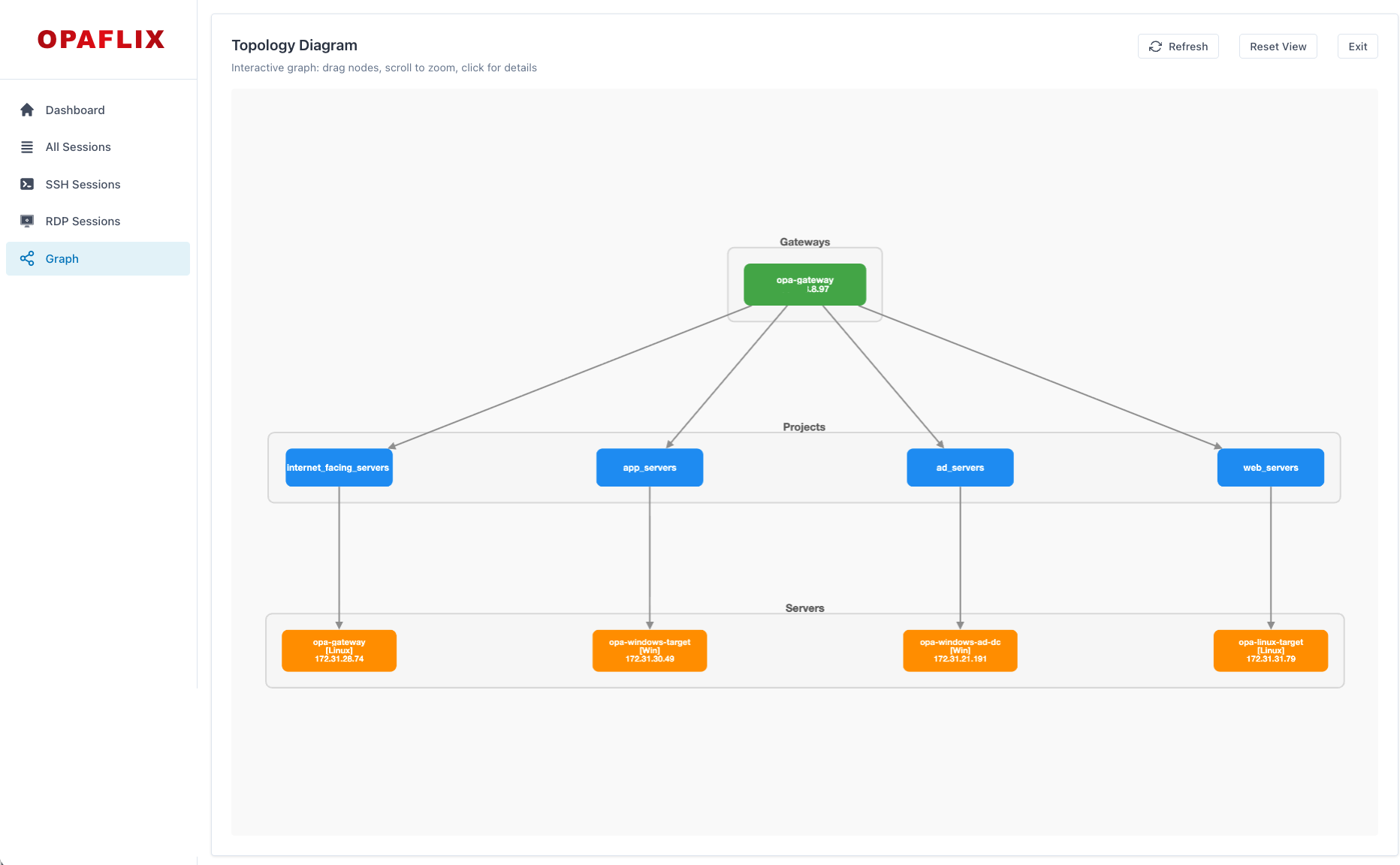

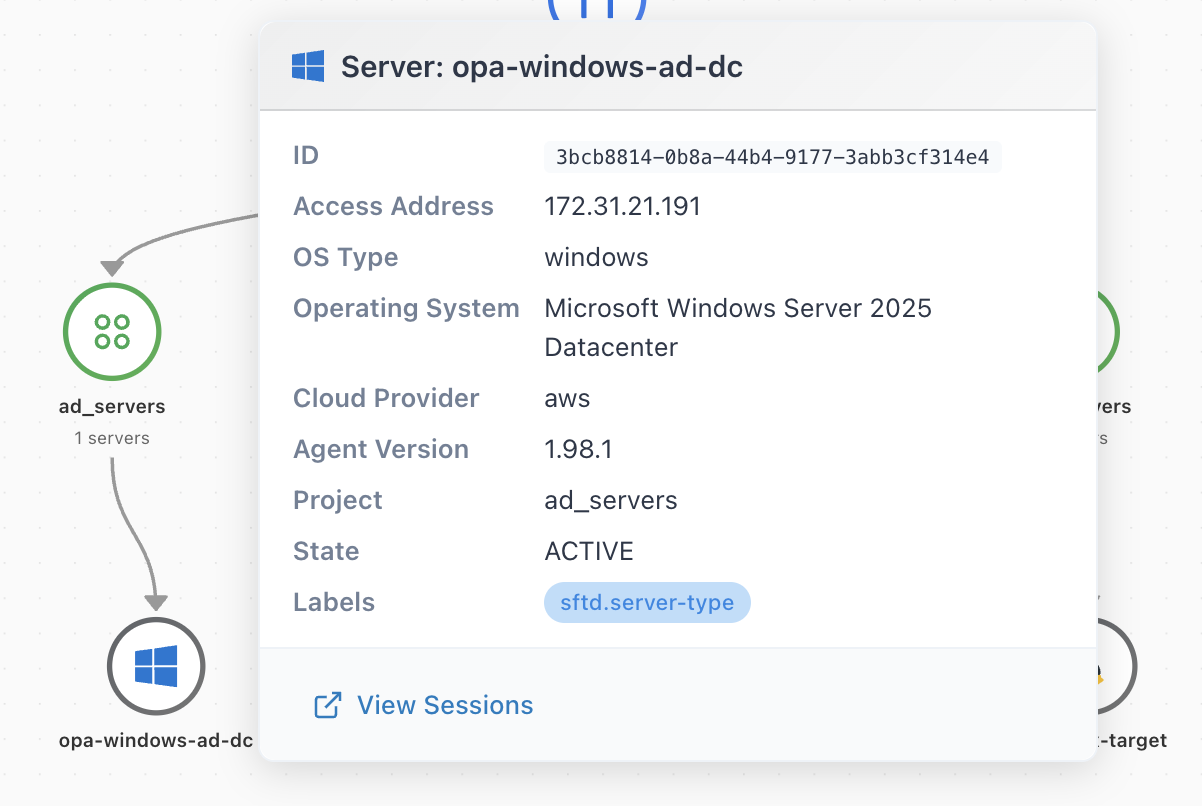

Infrastructure Graph

#

A visual topology view shows the relationships between Gateways, Projects, and Servers — populated with live data from the OPA API. This helps you understand your PAM infrastructure at a glance and quickly navigate to relevant sessions.

Okta OIDC Authentication

#

All routes are protected by Okta OIDC. Session cookies are httpOnly, secure, and sameSite. Rate limiting, input validation, and security headers via Helmet.js are included by default.

IAM Roles Anywhere Support

#

For deployments outside AWS (e.g., Vercel, on-premises), Opaflix supports certificate-based authentication via IAM Roles Anywhere, so you don’t need to rely on static access keys. Static Access Keys are supported as well for simplicity, but using IAM Roles Anywhere is the recommended approach for AWS security best practice.

Architecture

#

The application is built with Node.js, Express, and Handlebars for the backend. Session recordings are served directly from S3 via presigned URLs — no server bandwidth is consumed for playback.

---
config:
  layout: dagre
---
flowchart LR
 subgraph Client["Client"]
        Browser["🌐 Browser"]
  end
 subgraph Opaflix["Opaflix"]
        App["Express.js App"]
        Auth["Okta OIDC"]
  end
 subgraph AWS["AWS"]
        S3[("AWS S3")]
  end
  subgraph OktaCloud["Okta Cloud"]
        OPA["OPA API"]
        Okta["Okta IdP"]
  end
  subgraph Database["Database"]
        PG[("PostgreSQL")]
  end
    Browser --> App
    App --> Auth & S3 & OPA
    App .-> PG
    Auth --> Okta

Quick Start

#

Get Opaflix running in single-tenant mode in a few steps:

1. Create an Okta Web App (OIDC) and configure the redirect URIs

2. Create an AWS S3 bucket and upload converted session recordings

3. Clone the Opaflix repository and set up the environment variables

   # Clone the repository
   git clone https://github.com/fabiograsso/okta-opaflix.git
   cd okta-opaflix

   # Create and edit the environment file
   cp .env.example .env

4. Fill in the required values in .env. The minimum required configuration in .env for single-tenant mode:

   # Application
   BASE_URI=http://localhost:3000
   SESSION_SECRET=your-secure-secret-minimum-32-characters-long

   # Okta Authentication
   OKTA_ISSUER=https://your-tenant.okta.com
   OKTA_CLIENT_ID=your-client-id
   OKTA_CLIENT_SECRET=your-client-secret

   # AWS S3
   AWS_REGION=us-east-1
   AWS_S3_BUCKET=your-bucket

   # Option 1: Static Access Keys
   AWS_ACCESS_KEY_ID=your-access-key
   AWS_SECRET_ACCESS_KEY=your-secret-key

   # Option 2: IAM Roles Anywhere
   # AWS_ROLES_ANYWHERE_TRUST_ANCHOR_ARN=arn:aws:rolesanywhere:us-east-1:123456789012:trust-anchor/abc123
   # AWS_ROLES_ANYWHERE_PROFILE_ARN=arn:aws:rolesanywhere:us-east-1:123456789012:profile/def456
   # AWS_ROLES_ANYWHERE_ROLE_ARN=arn:aws:iam::123456789012:role/OpaflixS3Access
   # AWS_ROLES_ANYWHERE_CERTIFICATE="-----BEGIN CERTIFICATE-----\n...\n-----END CERTIFICATE-----"
   # AWS_ROLES_ANYWHERE_PRIVATE_KEY="-----BEGIN PRIVATE KEY-----\n...\n-----END PRIVATE KEY-----"

5. Then start the application:

   # Option 1: Local Node.js
   npm install && npm start

   # Option 2: Docker Compose
   make start

   Open http://localhost:3000 and authenticate with Okta.

Prerequisites and Setup

#

Before deploying Opaflix, you need:

Okta OIDC Setup

#

1. Create a new Web Application in your Okta Admin Console
2. Set the Sign-in redirect URI to http://localhost:3000/authorization-code/callback (or your custom domain)
3. Set the Sign-out redirect URI to http://localhost:3000/login
4. Copy the Client ID and Client Secret to your .env file

OPA Gateway Configuration

#

For Opaflix to correctly parse session metadata, recordings must follow a specific filename format. Edit /etc/sft/sft-gatewayd.yaml on your OPA Gateway:

LogFileNameFormats:
  SSHRecording: "{{.Protocol}}~{{.StartTime}}~{{.TeamName}}~{{.ProjectName}}~{{.ServerName}}~{{.Username}}~"
  RDPRecording: "{{.Protocol}}~{{.StartTime}}~{{.TeamName}}~{{.ProjectName}}~{{.ServerName}}~{{.Username}}~"

Restart the gateway with sudo systemctl restart sft-gatewayd.

Session Conversion

#

OPA session recordings (.asa files) must be converted before uploading to S3:

# SSH: .asa → .cast (Asciinema format)
sft session-logs export --insecure --format asciinema /path/source.asa --output /path/output.cast

# RDP: .asa → .mkv
sft session-logs export --insecure --format mkv --output /path/ /path/source.asa

Two conversion utilities are provided in scripts/convert-sessions/:

Bash Script (convert-sessions.sh): A straightforward batch converter. Point it at a directory of .asa files, and it will convert them to the appropriate format (.cast for SSH, .mkv for RDP). Ideal for one-off conversions and tests. You have then to manually upload the converted files to S3 (e.g. using aws s3 cp or manually uploading the files in the AWS Management Console).

Python Service (convert-sessions.py): A more sophisticated option that runs as a background service. It uses file system monitoring (via watchdog) to detect new .asa files as they arrive, converts them automatically and upload them to the S3 bucket. This is the recommended approach for production environments where you want near real-time availability of session recordings in Opaflix.

You can read more details in the scripts documentation on GitHub.

AWS S3 Bucket Setup

#

Opaflix requires an S3 bucket to store converted session recordings. The bucket needs appropriate IAM policies to allow Opaflix to generate presigned URLs for playback.

You can find the full AWS setup documentation in the AWS scripts documentation on GitHub.

A CloudFormation template is provided to automate the entire AWS setup, including:

• S3 bucket with proper CORS configuration for browser-based playback
• IAM policy with least-privilege permissions for Opaflix
• Optional IAM Roles Anywhere trust anchor and profile (for deployments outside AWS)

Known Limitations

#

Opaflix is a v1 release. There are a few intentional constraints worth knowing:

• No permission management. All authenticated users can access all recordings. The primary audience is PAM Admins and Auditors — adding granular permission management is on the long-term roadmap, but keeping things simple was the priority for this release.
• S3 only. Other storage backends may be evaluated in the future based on feedback.
• Vibe Coded. As mentioned above, this project was built with heavy AI assistance. It’s been tested, but if you find a bug, please open an issue.

Sample Video

#

What’s Next

#

The project is live and open for contributions. The immediate roadmap includes:

• Improve the initial tenant creation process in multi-tenant mode with a dedicated UI
• Evaluate granular permission management based on community feedback
• Evaluate additional storage backends beyond S3

Documentation Links

#

The complete documentation is available in the GitHub Repository, here are some quick links to get you started:

• Main Documentation
• Automatic Session Conversion Script
• AWS Documentation and CloudFormation template

Conclusion

#

Opaflix fills a practical gap for anyone running Okta Privileged Access at scale. If your security team needs to review session recordings regularly, having a searchable, authenticated, browser-based player dramatically reduces friction — whether you’re responding to an incident or running a quarterly compliance review.

The project is available now at github.com/fabiograsso/okta-opaflix under the Apache 2.0 license.

Questions or feedback? If you try it, feel free to open issues, submit PRs, or leave a comment below. Feedback from the field is always welcome.
